Introduction

In public safety and law enforcement, the ability to establish reliable surveillance rapidly can be the difference between a successful operation and a missed opportunity. The CAHC-B200 High Quality 1080P IP 20X Car Roof Mounted PTZ Camera[citation:0] is designed to meet this need. Its core strength lies in its versatility—it can be quickly deployed either as a mobile unit on a vehicle or as a stationary post using a tripod, making it an indispensable tool for police, military, and emergency services.

This case study demonstrates a rapid-deployment scenario for public safety monitoring, utilizing the CAHC-B200 camera with two primary installation methods: a heavy-duty tripod for fixed, elevated viewing, and a rugged portable case (with a magnetic mount) for rapid mobile deployment.

The Challenge: Rapid Deployment for a Public Event

A municipal police force was tasked with ensuring security for a large, open-air public event in a downtown area. The security command required a flexible surveillance system that could:

1. Provide immediate, high-definition overwatch of the main square and entrance points.

2. Be deployed in under 15 minutes upon arrival.

3. Operate effectively in low-light conditions in the evening.

4. Be easily relocatable during the event as crowd patterns shifted.

5. Deliver a lossless, real-time IP video feed to the command center with no latency.

Traditional fixed security cameras were insufficient for the changing dynamics of the event. They needed a solution that combined mobility with professional-grade surveillance capabilities.

The Solution: CAHC-B200 with Dual Rapid-Deployment Kits

The force chose the CAHC-B200 for its high-performance specifications and, crucially, its dual-mode deployment flexibility. They prepared two distinct kits based on the application.

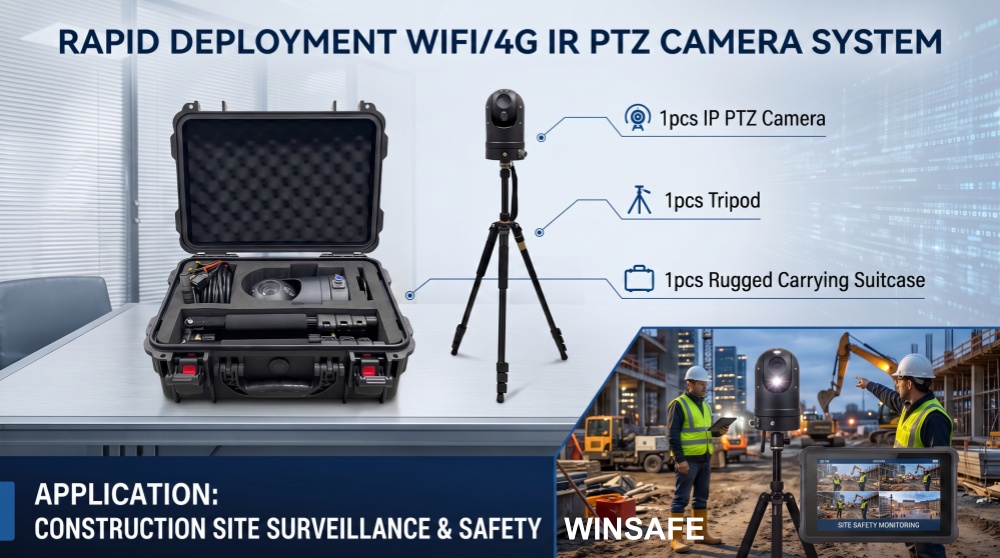

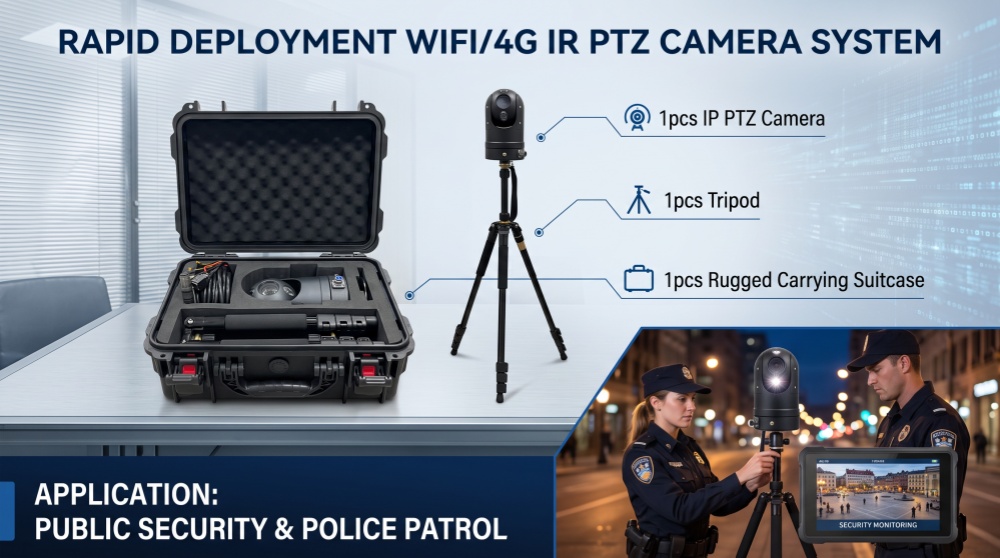

Kit 1: The Fixed Overwatch Post (Tripod Mount)
For a stable, elevated view of the main square, the camera was deployed on a heavy-duty tripod. This setup is ideal for scene-of-crime, perimeter security, and temporary command posts.

· Rapid Installation: A single officer was able to set up the tripod, mount the camera, and connect the video cables in under 10 minutes. The tripod's adjustable legs ensured a stable platform on uneven ground.

· High-Quality Optics: The camera's 30X optical zoom (f=4.3mm - 129mm) provided crisp 1080p imagery of the crowd from over 200 meters away. The 63.7° wide-angle view allowed for excellent situational awareness of the entire square.

· Superior Night Vision: Equipped with a powerful IR illuminator with a 50-80 meter range[citation:0], the camera provided clear black-and-white footage in complete darkness. The ICR (Infrared Cut Filter Removal) automatically switched to night mode for seamless 24/7 operation.

Kit 2: The Rapid Mobile Response (Portable Case & Magnetic Mount)
As a potential crowd surge was identified at a secondary entrance, the command center needed an immediate mobile unit. The second CAHC-B200 was deployed via its mobile kit.

· Portable Case Transport: The camera and accessories were stored in a rugged, waterproof portable case, allowing for easy transport to the location by a single responder.

· Magnetic Mount Installation: The strongest feature of this kit is the camera's powerful built-in magnet. The responder simply placed the camera on the roof of a police SUV, where it instantly and securely attached without the need for any tools or roof racks.

· Instant Vehicle Power: The camera was powered directly from the vehicle's 12V power supply (DC11V - 18V), ensuring unlimited operational time without relying on internal batteries.

· Operational Flexibility: Using the camera's 360° continuous rotation and a vertical range of -30° to 90°, the operator could easily pan, tilt, and zoom to monitor the crowd dynamics from an elevated, unobstructed position.

Technical Specifications & Environmental Durability

The success of the deployment was underpinned by the camera's robust design:

· Pan & Tilt Performance: Preset speeds of 240°/s and 200°/s for horizontal and vertical movements allowed for rapid repositioning.

· Power and Connectivity: The IP output ensured reliable, long-distance transmission of uncompressed video.

· Weatherproofing: With an IP66 rating and operating temperatures from -10°C to 65°C, the camera was protected against dust and any unexpected rain during the outdoor event.

Conclusion and Results

The dual-deployment strategy was a complete success. The tripod-mounted CAHC-B200 provided static, high-definition overwatch of the main event area, while the rapidly deployed magnetic-mount unit offered the flexibility to monitor dynamic situations as they unfolded.

Key Outcomes:

· Deployment Speed: Both units were fully operational in under 15 minutes of arrival.

· Enhanced Situational Awareness: The 20X optical zoom and 1080p resolution allowed security personnel to identify individuals and potential threats from a safe distance.

· Reliable Low-Light Performance: The 80M IR range ensured continuous surveillance into the evening hours.

· Unmatched Flexibility: The ability to instantly move a camera from a vehicle roof to a tripod allowed the command center to adapt to the changing needs of the public event in real-time.

The CAHC-B200 PTZ camera, with its robust construction, high-quality optics, and versatile mounting options, proved to be the ideal solution for rapid-deployment public safety surveillance. Its use of tripods for fixed posts and portable cases with magnetic mounts for mobile units offers a powerful, scalable model for modern security operations.
